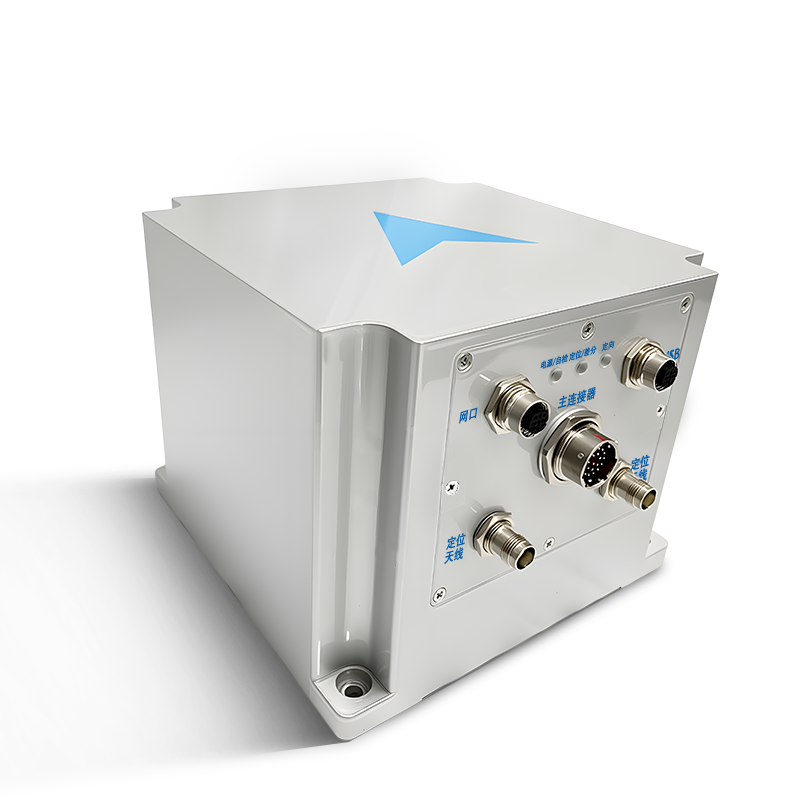

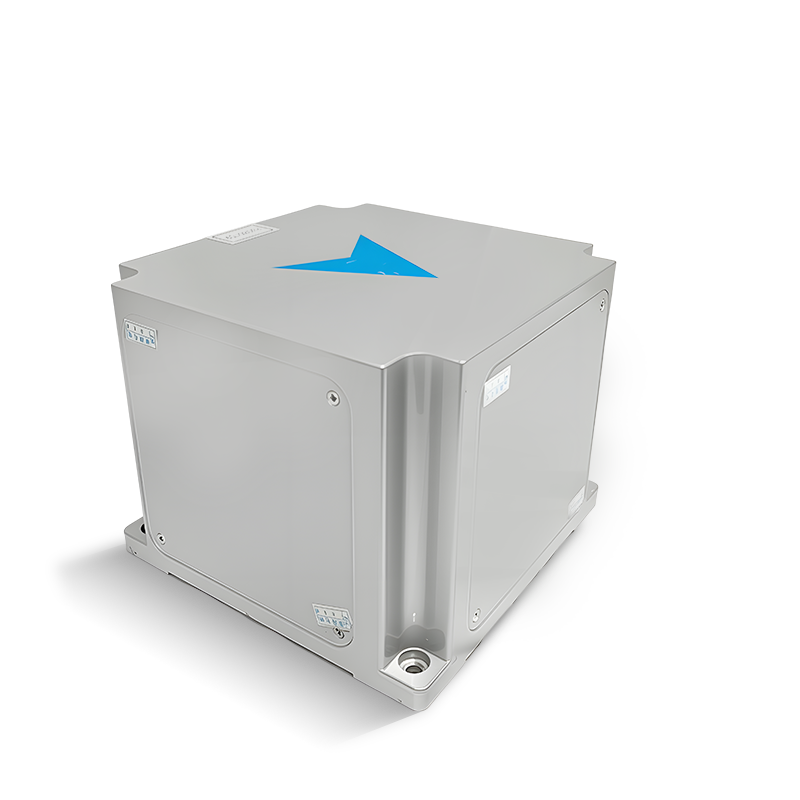

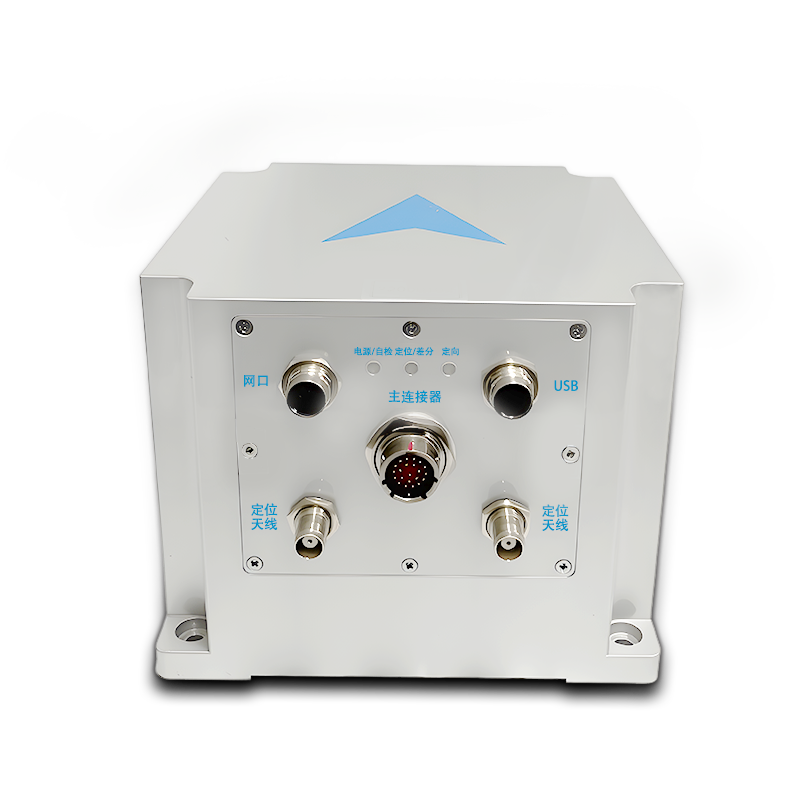

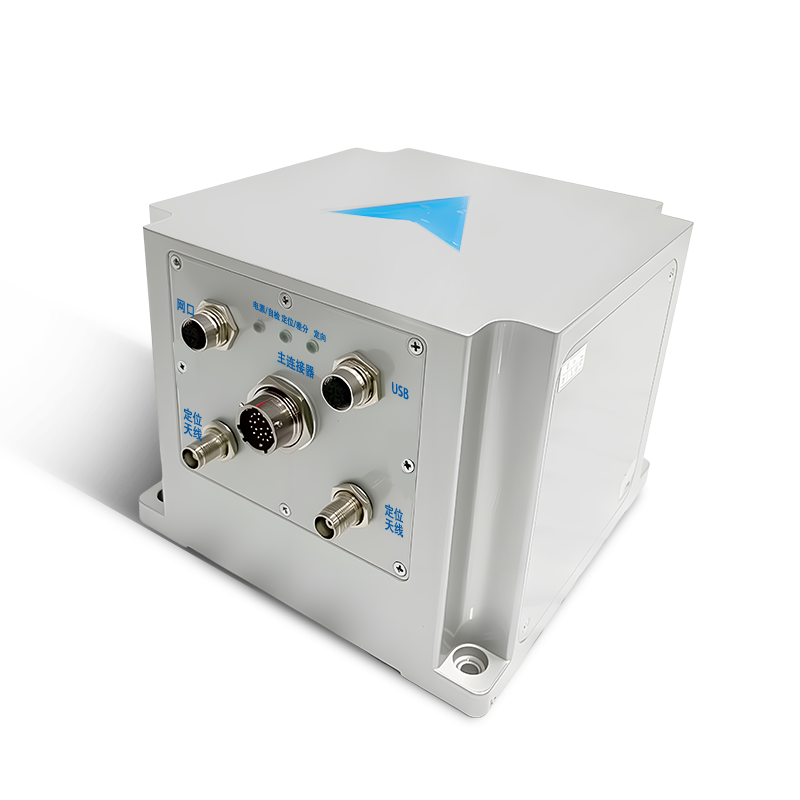

GPS-denied Area Integrated INS1700 Anti-jamming Position Navigation
description1
description2
Autonomous vehicles (AUVs, ROVs, USVs) help reduce human exposure to dangerous environments while ensuring compliance with safety and environmental regulations. A key strength of Poseidon INS1700 lies in its ability to adapt to diverse and challenging environments. With full-temperature calibration, it ensures consistent performance across a wide range of temperatures, while its compact and energy-efficient design makes it highly suitable for applications where space and power consumption are critical. The system’s multi-mode navigation capability is particularly effective in scenarios like tunnels or overpasses, where satellite signals may be disrupted, ensuring uninterrupted and precise operation.
At Poseidon，we provide advanced technologies designed to meet these challenges head-on. Our solutions, including high-precision subsea navigation, imaging systems, and robust autonomous vehicles, are built to perform in the harshest conditions. By optimizing operations and reducing risks, Poseidon empowers energy operators to achieve reliable, efficient results throughout every stage of offshore oil and gas projects.
Ins 670 Features
● Size, weight, software, algorithm, and interface protocol can be customized according to the user's usage or application scenarios
● Supports shaking base alignment without GPS assistance and unknown latitude information
● Can be connected to an external odometer and DVL for integrated navigation
● Built-in data storage function, Novate IE post-processing, can also store navigation data and external information
Ins 670 parameter
| Main Parameters | Dimensions | 179.6mm×179.6mm×145mm |
| Weight | 7kg | |
| North-seeking Accuracy | 0.03°*secφ (RMS） | |
| Heading Accuracy | 0.03° | |
| Attitude Accuracy | 0.003° | |
| Position Accuracy(GNSS failure) | 0.5nm/h(CEP) ,20m/5min |
Key Benefits at a Glance
● Multi-System Compatibility: Supports GPS, BDS, GLONASS, Galileo, and ground-based augmentation systems for centimeter-level accuracy.
● Optimized Navigation: Features multi-mode navigation and enhanced pure inertial positioning for environments with satellite signal loss (e.g., tunnels, overpasses).
● Customizable Integration: Rich interfaces and protocols allow for customization to meet diverse application needs.
● Enhanced Capabilities: Supports external sensors such as odometers, DVL, and USBL for advanced assisted navigation with GNSS measurements and IMU raw data for post processing。
Why Choose INS1700?
Poseidon's navigation solutions for AUVs and ROVs provide precise positioning and reliable performance.Interoperable solutions for easy integration, INS1700 aligned with Poseidon's open philosophy, our products are fully compatible with third-party assets, and is built to endure vibration, shock, and harsh environments, guaranteeing exceptional durability and long-term reliability for the most challenging missions.
