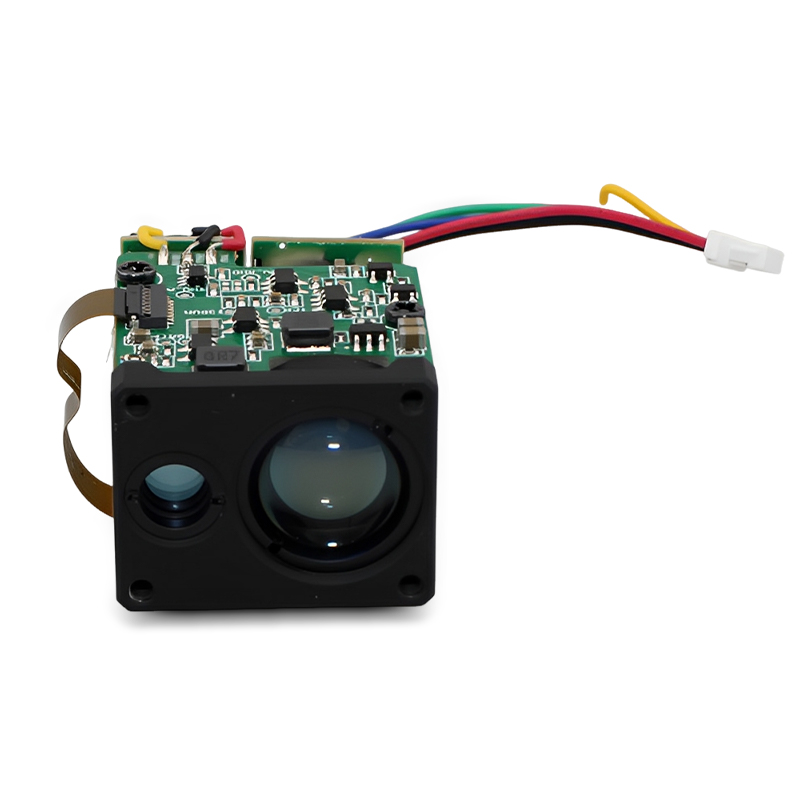

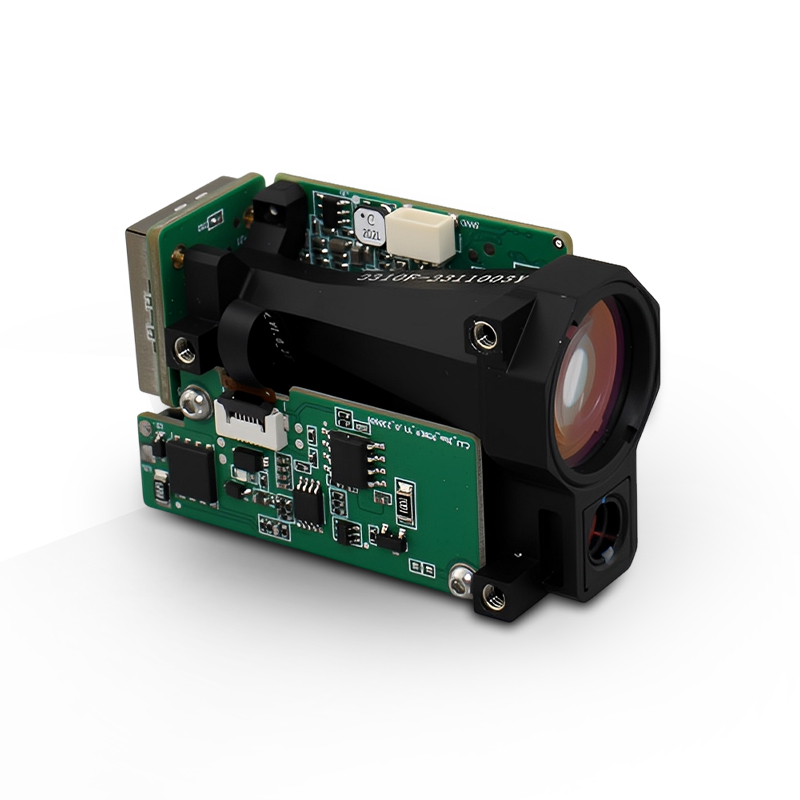

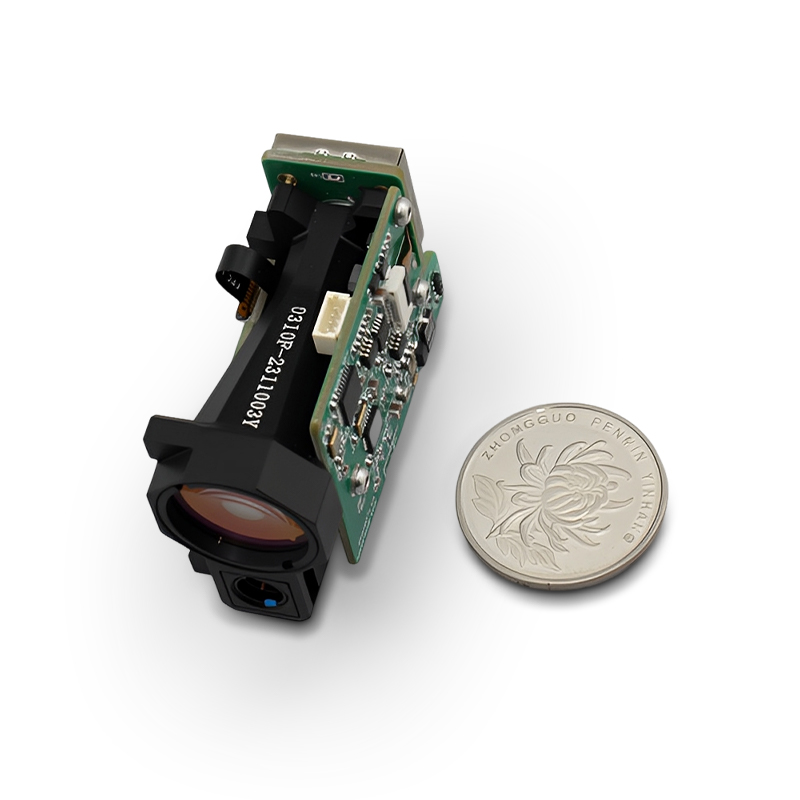

Laser Rangefinder Module SLLR3000

Key Features

● Extended Range Performance:

(Conditions: visibility ≥12km, humidity ≤80%)

Buildings: ≥5km

Vehicles (2.3m×2.3m): ≥3km

Personnel (1.75m×0.5m): ≥2km

UAVs (0.2m×0.3m): ≥1km

● Multi-Mode Functionality: Single/continuous ranging, multitarget detection, and self-diagnostics.

● Precision Specifications:

Wavelength:1535nm±5nm | Update rate: 1–10Hz adjustable

Beam divergence: ≤0.6mrad | Eye-safe: Class 1 laser

Size: 48×21×31mm | Weight: <33g

● Robust Design: Wide voltage input (5–28V DC), low power consumption (≤0.7W avg), and high shock resistance.

Typical Applications

The laser rangefinder enables precise distance measurement for a variety of targets, including single-arm structures, maritime objects, road-based assets, airborne targets, and terrain mapping. Designed for versatility, the module integrates with multiple platforms such as ground vehicles, portable handheld units, aircraft, naval systems, and space-based electro-optical reconnaissance setups, offering a comprehensive ranging solution.

Field-tested in real combat environments, this system has been effectively utilized to upgrade fire control mechanisms, support precision strikes, and enhance special operations reconnaissance. It plays a critical role in armored vehicle targeting, sniper team operations, artillery adjustments, and drone missions by supplying accurate, real-time distance data. Additionally, the system can be customized to refine interface compatibility, ruggedize for harsh conditions, and fine-tune performance to meet specific operational needs.
