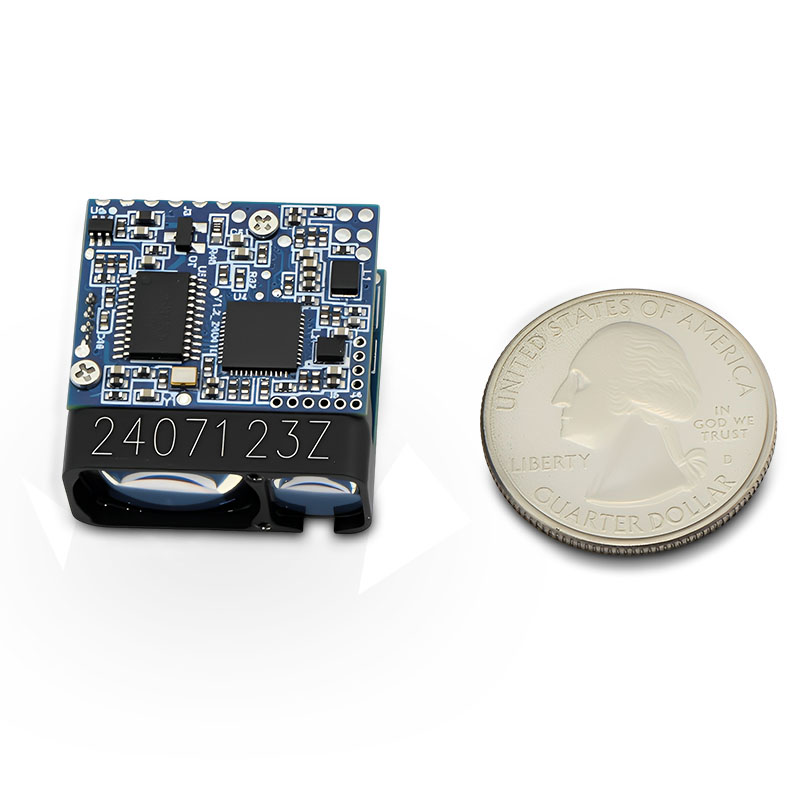

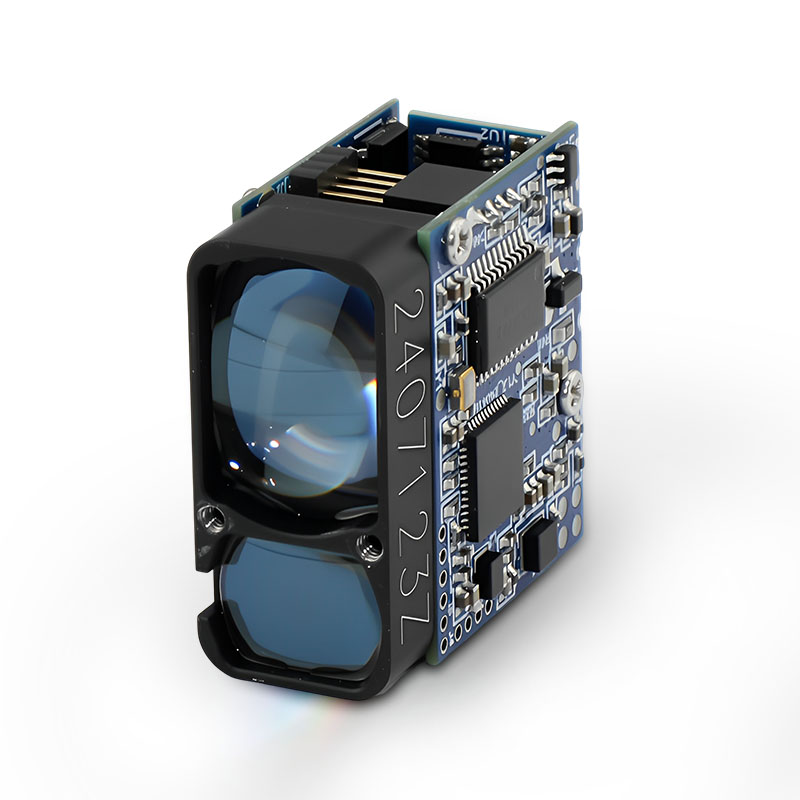

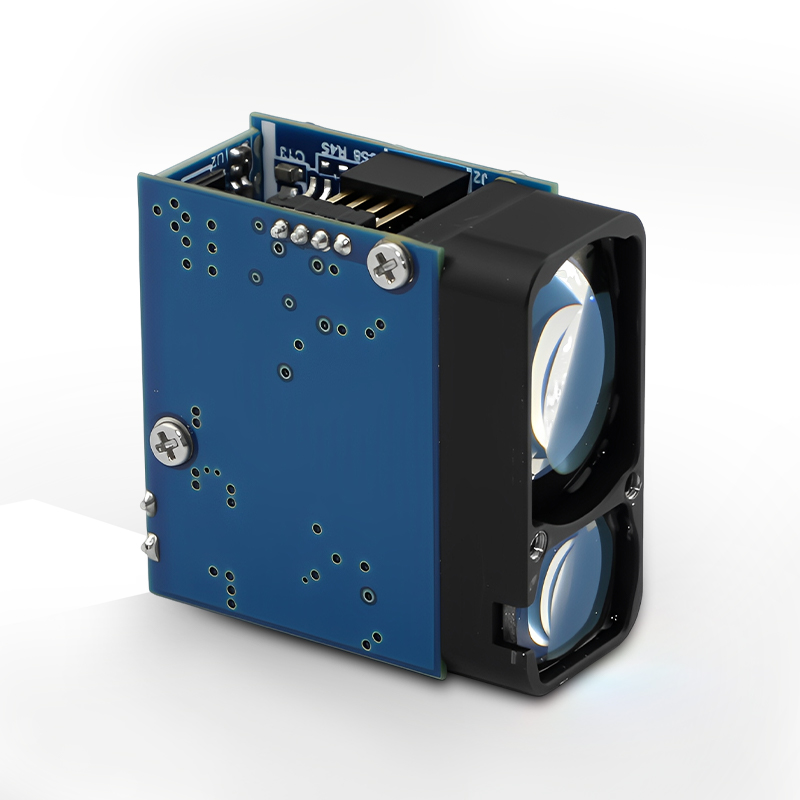

Laser Rangefinder Module SLLR905

SLLR905 semiconductor laser rangefinder is an innovative product that integrates advanced technology and humanized design carefully developed. Using a unique 905nm laser diode as the core light source, this model not only ensures human eye safety, but also sets a new benchmark in the field of laser ranging with its efficient energy conversion and stable output characteristics. Equipped with high-performance chips and advanced algorithms independently, the product achieves excellent performance with long life and low power consumption, perfectly meeting the market demand for high-precision and portable ranging equipment.

As a critical battlefield asset, our military-grade laser rangefinder employs mature and reliable laser ranging technology to accurately determine distances to both static and dynamic targets by precisely detecting laser return signals. Engineered to military standards, this product series delivers exceptional environmental adaptability and tactical value across diverse combat scenarios.

product details

product description

description1

description2

Product Description

Technical specifications

Key Features

● High precision ranging data compensation algorithm: optimization algorithm, fine calibration.

● Optimized ranging method: accurate measurement, improve ranging accuracy.

● Low power consumption design: Efficient energy saving and optimized performance.

● Working capacity under extreme conditions: excellent heat dissipation, guaranteed performance.

● Miniaturized design, no burden to carry.

Core Advantages

● Multi-Platform Integration: Compatible with dismounted soldier systems, vehicle-mounted platforms, airborne equipment, and naval systems.

● Smart Algorithm: Real-time data compensation effectively mitigates environmental interference.

● Lightweight Design: Minimal weight of just 11g maintains soldier mobility.

Typical Applications

The laser rangefinder achieves target ranging functionality, capable of detecting single-arm targets, sea-based targets, road targets, aerial targets, and terrain detection. The laser rangefinder module can be applied to various platforms including ground vehicle-mounted systems, lightweight portable devices, airborne equipment, naval systems, and space exploration platforms as a part of electro-optical reconnaissance systems, serving as an integrated ranging solution.

Proven in actual combat scenarios, this solution has been successfully deployed to enhance fire control systems, precision engagement operations, and special forces reconnaissance missions. The rangefinder provides essential support for armored units, sniper teams, artillery positioning, and UAV operations by delivering real-time, reliable targeting data. Customization options are available to optimize system interfaces, environmental hardening, and performance parameters based on specific mission requirements.

SLLR905
Wavelength	905nm±5nm
Ranging capacity	3~1200m (Building)
Ranging capacity	≥200m (target @0.6m×0.6m)
Ranging accuracy	±0.1m (≤10m)
	±0.5m (≤200m)
	±1m (＞200m)
Beam divergency	≤6mrad
Dimension	25×26×13mm
Weight	11g+0.5g
