Micro-nano Angular Rate Sensor Fiber Optic Gyro with Start Time Less Than 1s

Micro-optic architecture & Precision Sagnac-effect fiber sensing core encapsulated in ultra compact cylindrical form (24mm diameter × 40mm height) . Engineered with full solid-state construction and inertial-grade reliability, enabling maintenance-free operation in extreme environments. Features instantaneous readiness, ultra-compact form factor, and analog signal integrity for seamless integration into high-dynamics platforms requiring unaffected orientation control across GNSS-denied and vibration-intensive operational areas.

micro-nano-angular-rate-sensor-fiber-optic-gyroscope-with-start-up-time-less-than-1s-1

product details

product description

description1

description2

Product Description

Technical specifications

Downloads

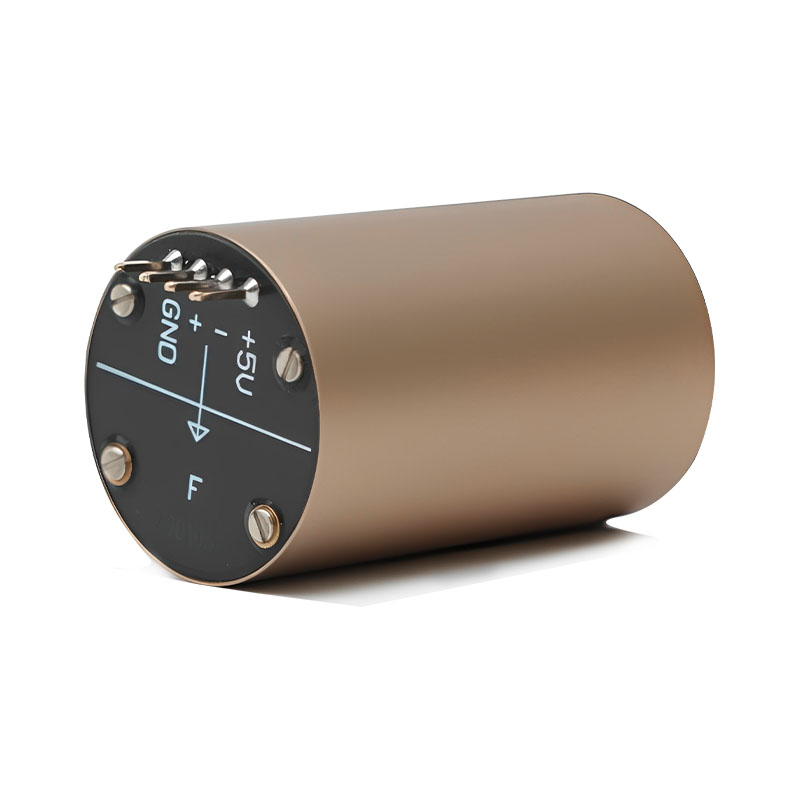

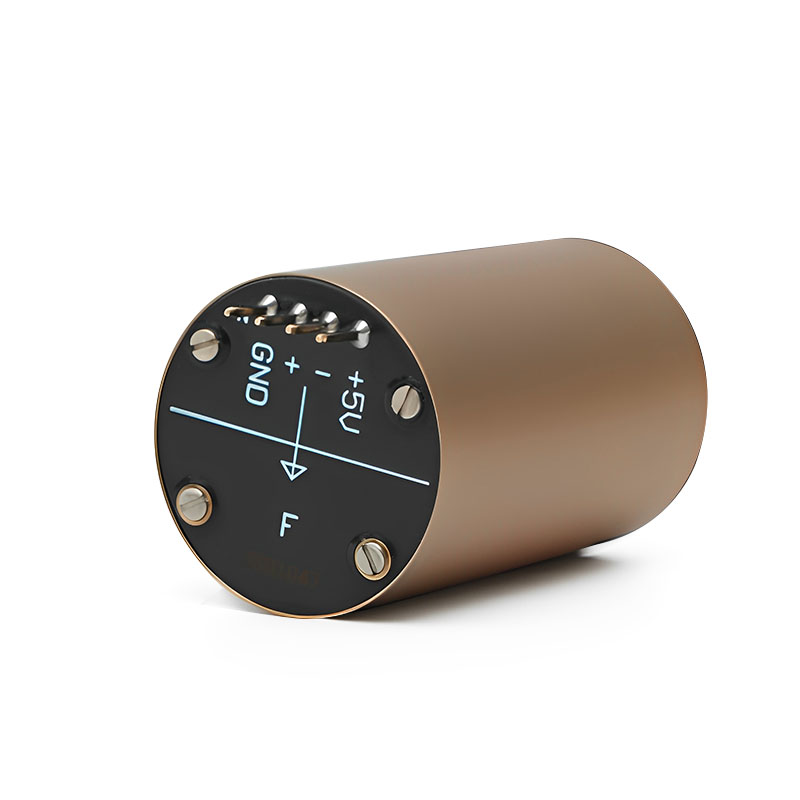

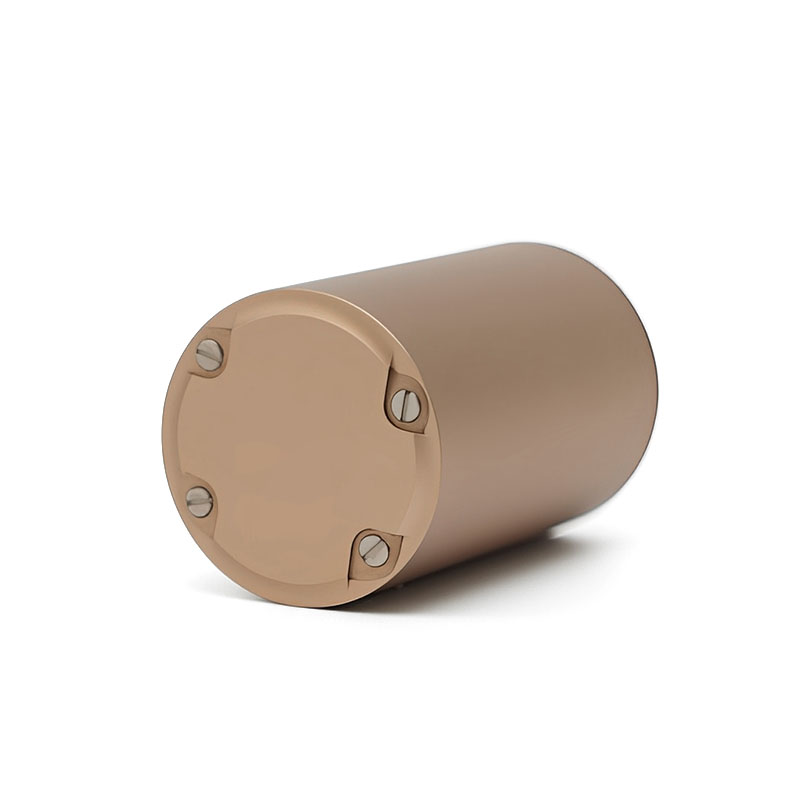

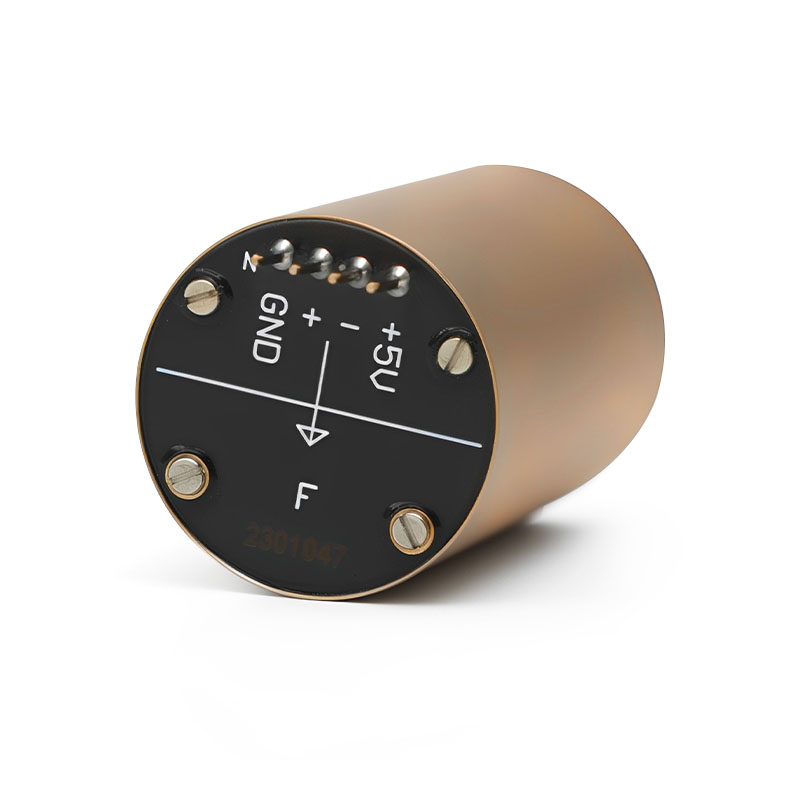

Poseidon BSD217 Micro-Nano Fiber Optic Gyroscope | Low-Cost Angular Rate Sensor

Our BSD217 achieves full operational readiness within 1s cold start through micro-nano monolithic integration, delivering real-time analog output without mechanical wear components. Optimal for attitude stabilization in high-G airborne systems and industrial manipulators requiring definitive orientation feedback under chronic vibration.

Poseidon BSD217 Micro-Nano Fiber Optic Gyroscope is a cutting-edge angular rate sensor that sets new standards in precision, reliability, and cost-efficiency. Designed with advanced micro-nano monolithic integration technology, it achieves full operational readiness within just 1 second from a cold start, making it a game-changer for time-sensitive applications. Unlike traditional gyroscopes, Poseidon BSD217 delivers real-time analog output without any mechanical wear components, ensuring long-lasting performance even in the most demanding environments. Its robust design makes it the optimal choice for attitude stabilization in high-G airborne systems and industrial manipulators, where definitive orientation feedback is critical under chronic vibration conditions. Whether you're in aerospace, robotics, or automotive industries, the BSD217 is your go-to solution for high-performance angular rate sensing.

Parameters	Unit	FOG-217-AN
Input Range	°/s	±300
Bias Stability	°/h	≤2.5
Bias Repeatability	°/h	≤2
Random Walk Coefficient	° /√ h	≤0.04
Scale Factor Non-linearity	ppm	≤1000
Scaling Factor Repeatability	mv/o/s	7
Startup Time	s	＜1
Bandwidth	Hz	≥450
Power Supply	V	5±0.15
Power	W	≤0.7
Operating Temperature	℃	-40℃~+65℃
Storage temperature	℃	-55℃~+85℃
Vibration	Hz	20-2000
Shock	g	20
Dimensions	mm	φ24×40
Weight	g	30g

TH2206052-C01-RO1 (42A02)LVD

AGV
Autonomous vehicle
Gimbal
Helicopter
Industrial vehicle
Pipe inspection
ROV
Train
Tunnels and mining
Land vehicles
UAV
Airborne sensors:
Optronic
Radar
EM
UGV
High & low velocity guided & unguided systems
Pointing & designation for land platforms
Missile
Your system

FEATURES & APPLICATIONS

Sagnac Effect Technology

Precision angular rate detection using counter-propagating light beam interference.

Our BSD217 leverages the proven Sagnac Effect to achieve unparalleled precision in angular rate detection. By utilizing counter-propagating light beam interference, it ensures accurate measurements even in highly dynamic environments. This technology is the backbone of the gyroscope’s reliability, making it a trusted choice for critical applications.

Solid-State Design

No moving parts, zero wear, and ultra-high durability.

With no moving parts, our BSD217 eliminates mechanical wear and tear, offering ultra-high durability and longevity. Its solid-state construction ensures consistent performance in harsh conditions, reducing maintenance costs and downtime.

Instant Operation

<1s cold start for rapid deployment in time-critical applications.

One of the standout features of the BSD217 is its <1 second cold start capability. This rapid deployment is ideal for time-critical applications where immediate operational readiness is essential, such as UAV navigation or emergency response systems.

Compact & Lightweight

24mm diameter × 40mm height, ideal for space-constrained systems.

Measuring just 24mm in diameter and 40mm in height, our BSD217 is engineered for space-constrained systems. Its compact and lightweight design allows for seamless integration into a wide range of platforms without compromising performance.

Cost-Effective

Budget-friendly solution for industrial and defense applications.

Our BSD217 offers a budget-friendly solution without sacrificing quality or performance. It’s an excellent choice for industrial and defense applications where cost-efficiency is a priority, making advanced gyroscopic technology accessible to a broader audience.
