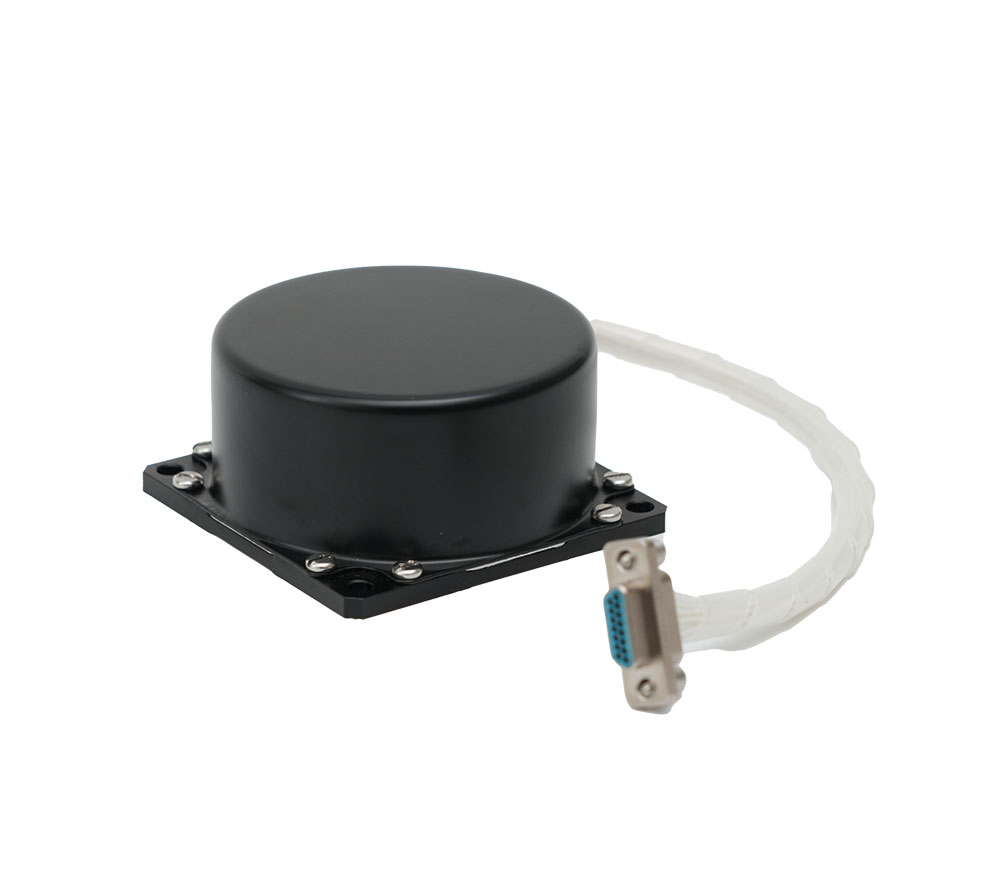

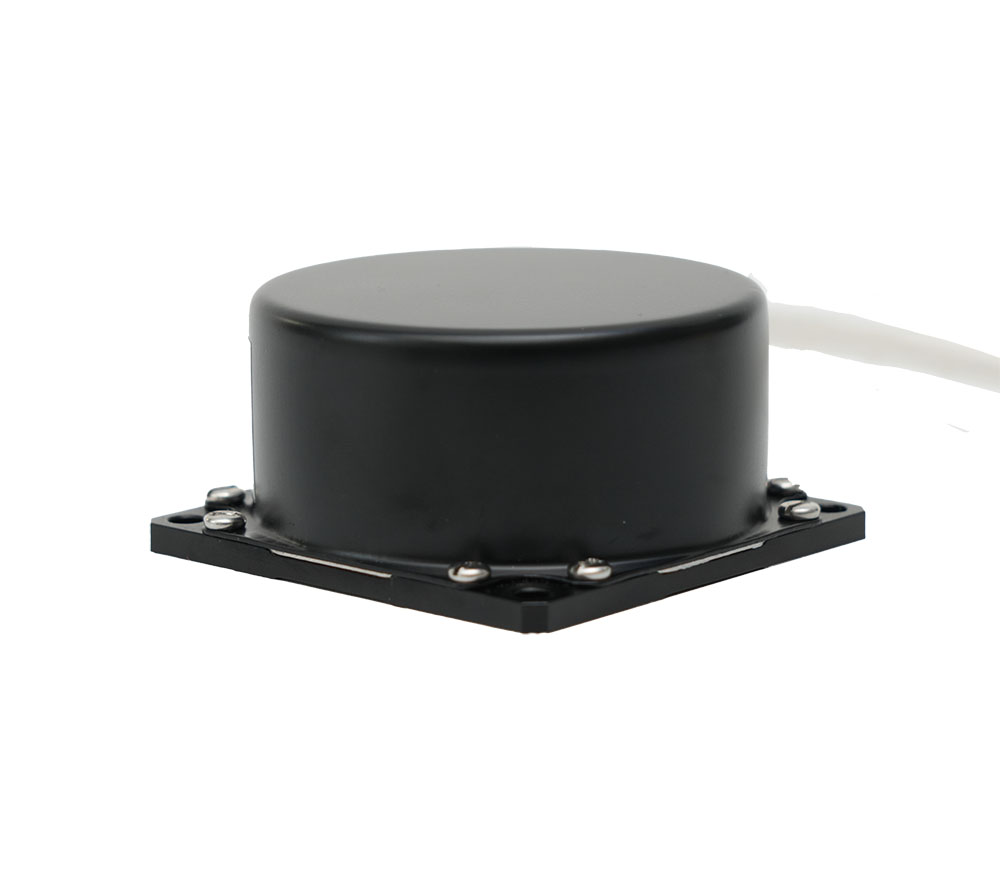

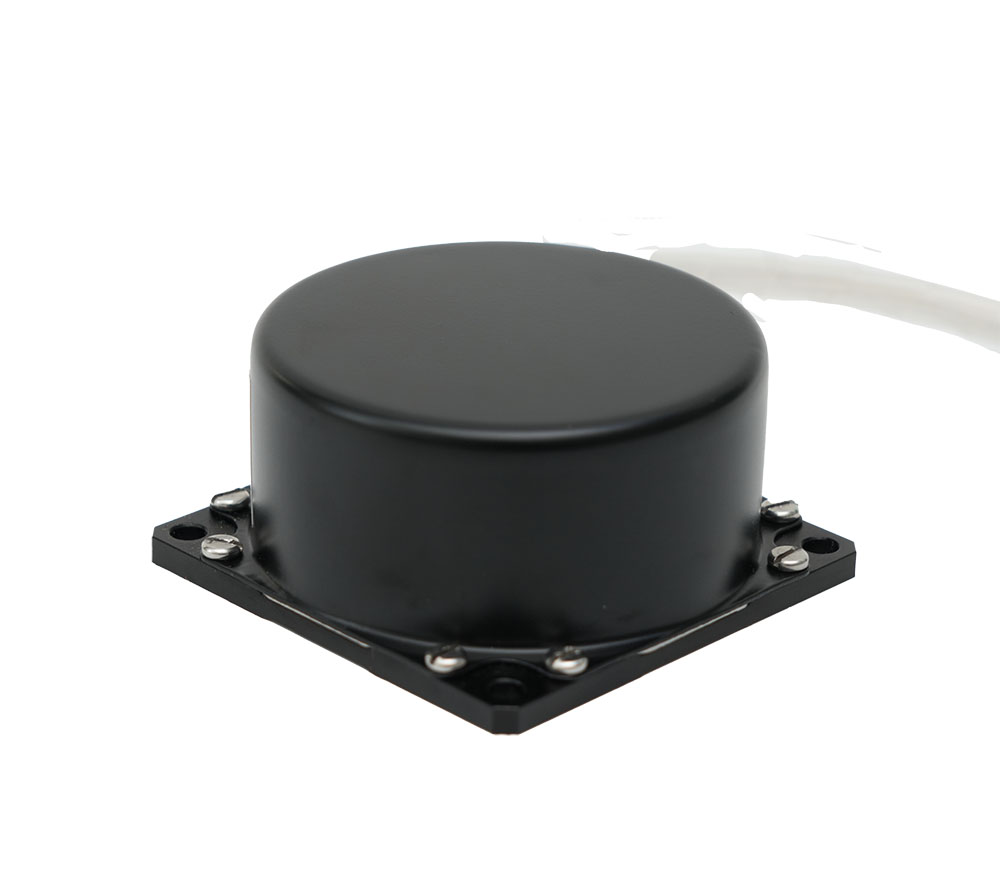

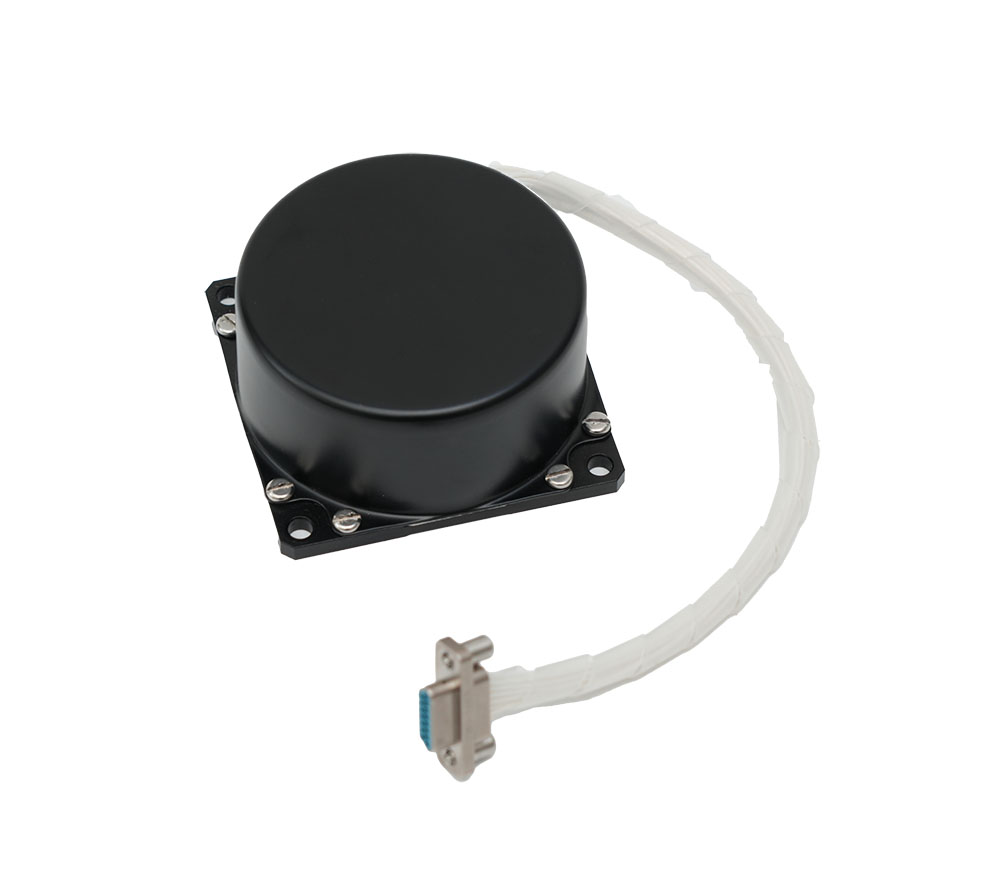

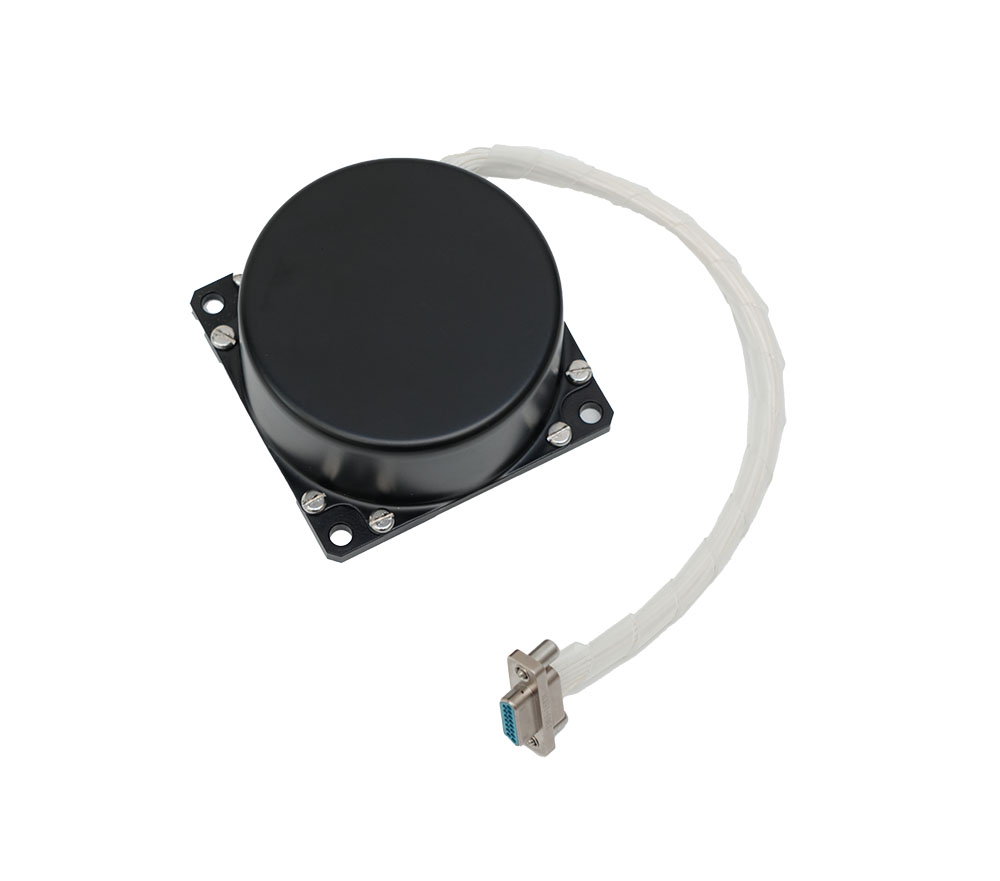

UAVs BSD60 Fast-Start Fiber Optic Gyroscope with Digital Outputs
description1
description2
Poseidon BSD60 is engineered with digital closed-loop technology, delivering exceptional zero-bias stability of 0.05º/h～0.2º/h (10s smoothing) for unmatched accuracy. With ultra-compact dimensions of 60mm×60mm×30mm and a lightweight design of ≤160g, BSD60 is perfect for space-constrained applications.
Engineered for precision and durability, this gyroscope boasts a simplified structure, wide dynamic range, and rapid startup time, ensuring reliable performance even in the most demanding environments. Its exceptional resistance to vibration and shock makes it a robust solution for a wide range of advanced applications, including:
● Small Inertial Measurement Units (IMUs)
● Inertial Navigation Systems (INS)
● Guidance Seekers
● Servo Tracking Systems
● Electro-Optical Pods
● Unmanned Aerial Vehicles (UAVs)
● Unmanned Surface Vehicles (USVs)
Whether deployed in military, aerospace, or industrial settings, digital BSD60 stands out as the ultimate solution for precise angular rate sensing, offering a perfect blend of compactness, durability, and superior performance.
| Parameters | Unit | BSD60A | BSD60B | BSD60C | BSD60D |
| Input Range | °/s | ±1000 | ±1000 | ±1000 | ±1000 |
| Bias Stability | °/h 10S | ≤0.05 | ≤0.1 | ≤0.2 | ≤0.5 |
| Bias Repeatability | °/h | ≤0.05 | ≤0.1 | ≤0.2 | ≤0.5 |
| Random Walk Coefficient | ° /√ h | ≤0.005 | ≤0.01 | ≤0.02 | ≤0.05 |
| Scale Factor Non-linearity | ppm | ≤30 | ≤50 | ≤80 | ≤100 |
| Scaling Factor Repeatability | ppm | ≤30 | ≤50 | ≤80 | ≤100 |
| Scale Factor Asymmetry | ppm | ≤30 | ≤50 | ≤80 | ≤100 |
| Startup Time | s | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| Bandwidth | Hz | >200 | >200 | >200 | >200 |
| Power Supply | V | ±5(Single power supply -5 , +5 available) | |||
| Power | W | ≤ 6 | ≤ 6 | ≤ 6 | ≤ 6 |
| Operating Temperature | ℃ | -40~65 | -40~65 | -40~65 | -40~65 |
| Storage temperature | ℃ | -50~80 | -50~80 | -50~80 | -50~80 |
| Vibration | Hz, g²/Hz | 20~2000,0.06 | |||
| Shock | g , ms | 30,11 | 30,11 | 30,11 | 30,11 |
| Data Refresh Date | Hz | 200~2000 | 200~2000 | 200~2000 | 200~2000 |
| Baud Rate | bps | 115200~921600 | |||
| Output Mode | / | broadcast (default)/triggered (customized) | |||
| Interface | / | RS-422 | RS-422 | RS-422 | RS-422 |
| Connector | / | J30J-15TJL | J30J-15TJL | J30J-15TJL | J30J-15TJL |
| Dimensions | mm | 60×60×30 | |||
| Weight | g | 150 | 150 | 150 | 150 |
Key Benefits at a Glance
● Ultra-High Precision: Digital closed-loop technology ensures zero-bias stability of 0.05º/h～0.2º/h for unparalleled accuracy.
● Compact & Lightweight: With dimensions of 60mm×60mm×30mm and a weight of ≤160g, it’s perfect for space-constrained applications.
● Rapid Startup: Designed for quick deployment in time-sensitive environments.
● Robust & Durable: Strong resistance to vibration and shock, ensuring reliable performance in harsh conditions.
● Simplified Structure: Easy integration into a variety of advanced systems.
● Wide Dynamic Range: Delivers consistent accuracy across diverse operational scenarios.
● Versatile Applications: Ideal for UAVs, unmanned vessels, guidance seekers, electro-optical pods, and more.
Whether for military, aerospace, or industrial automation, Fast Start-Up Fiber Optic Gyroscope with Digital Outputs --BSD60 offers precision, reliability, and compactness in one cutting-edge solution. Elevate your systems today!
Key Features
Digital Closed-Loop Technology: Zero-bias stability of 0.05º/h～0.2º/h. By leveraging cutting-edge embedded digital signal processing technology, BSD60 features a built-in adaptive filter that significantly enhances performance, slashing bias stability and angle random walk (ARW) by 50%-70%. This feature delivers unmatched precision and dependability.
Compact & Lightweight: 60mm×60mm×30mm, ≤160g.
BSD60 minimizes the impact of temperature variations, enhancing its performance in extreme conditions.
Fast Startup & Strong Vibration/Shock Resistance. Compared to traditional electromechanical gyros, BSD60 features a simpler structure, no moving parts, and no wear components, resulting in faster start-up times, reduced maintenance, and a smaller footprint.
High Precision & Wide Dynamic Range. As an angular speed sensor that integrates optical, mechanical, and electrical systems, based on the Sagnac effect and closed-loop control testing technology, BSD60 measures and processes the phase difference generated by two counter-propagating light beams, enabling precise angular rate detection and feedback within a fully closed-loop system.
● High Performance: Exceptional bias stability, low angle random walk, and superior scale factor linearity.
● Cost-Effective: Offers the performance of high-end gyros at an affordable price.
● Versatile: Suitable for a wide range of military and industrial applications.
● Reliable: Proven technology ensures consistent performance in harsh environments.
Discover the future of fiber optic gyroscopes with the Poseidon BSD60 – the ultimate solution for precision, reliability, and innovation.
