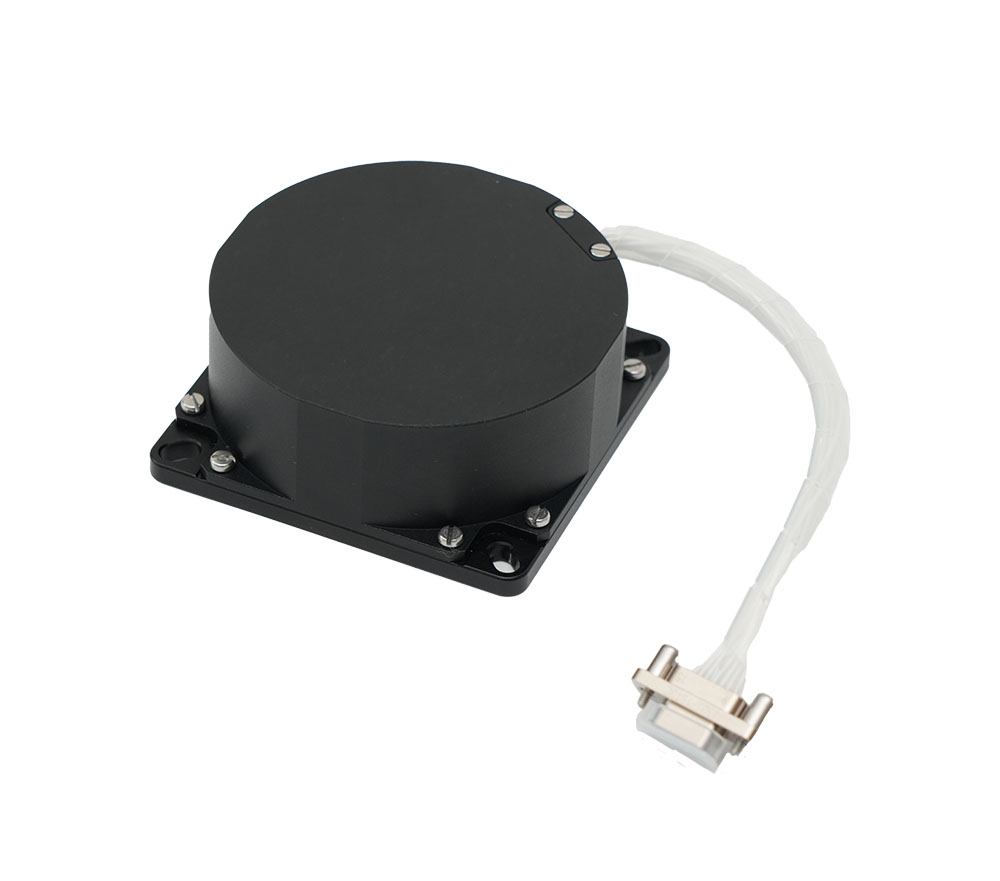

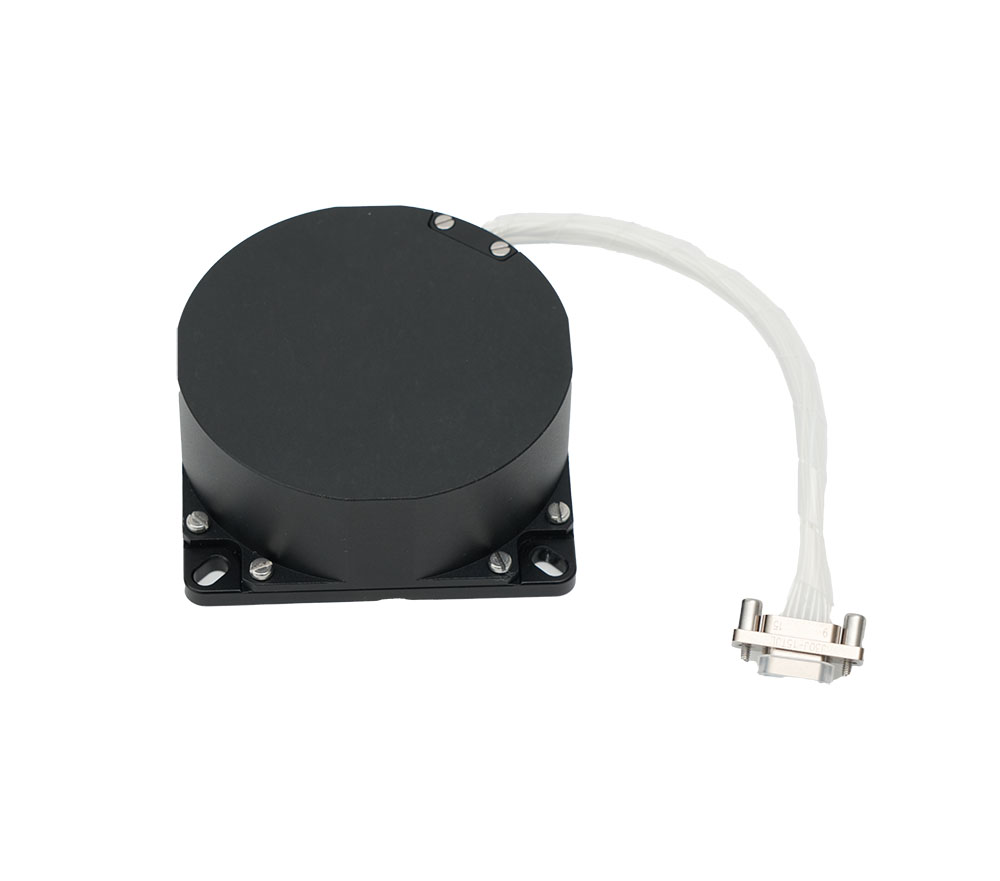

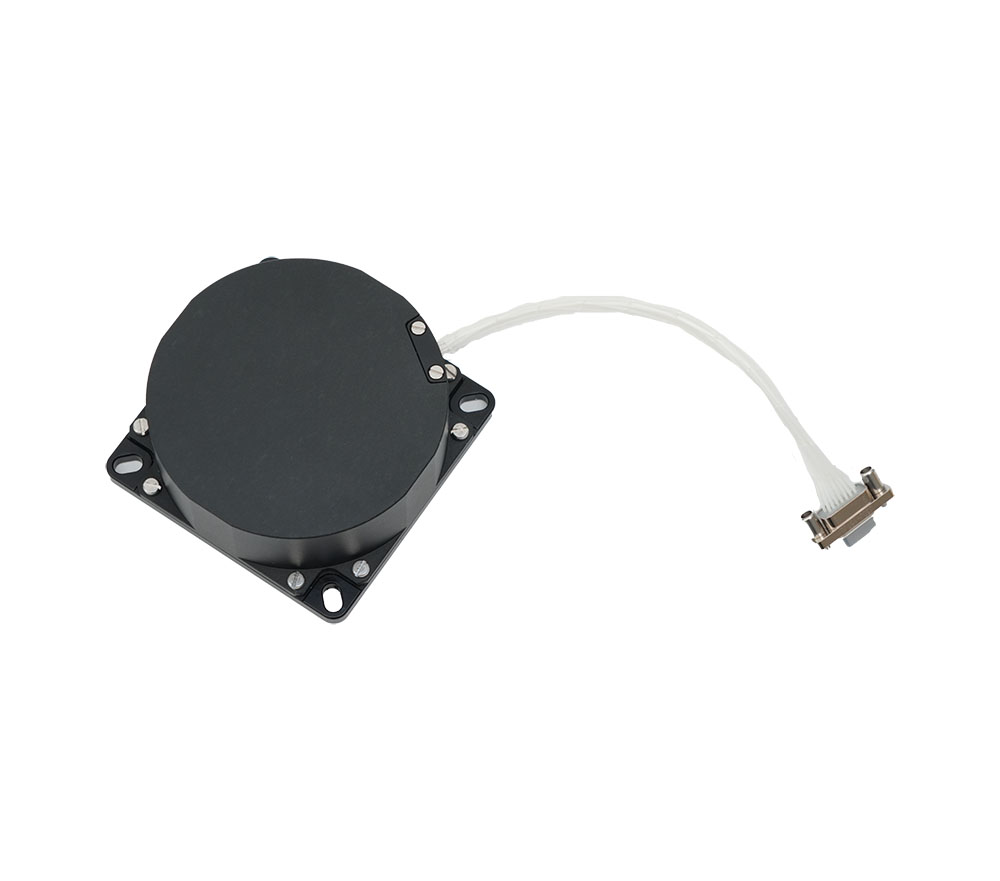

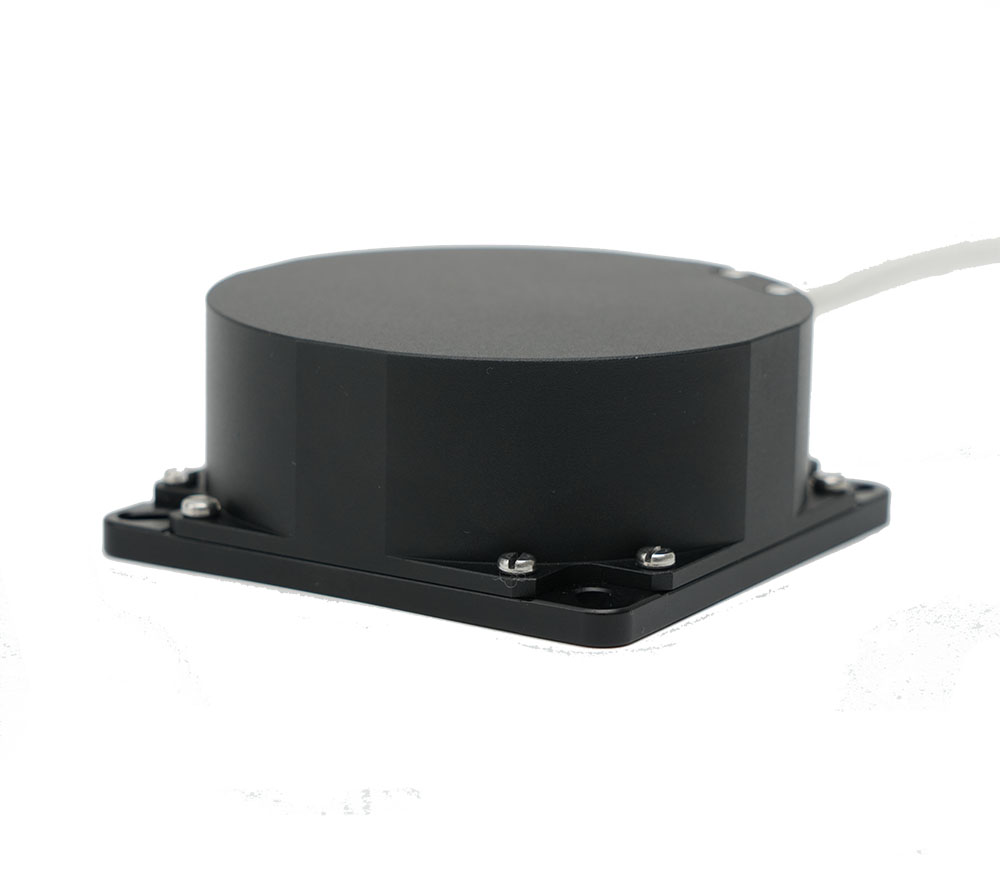

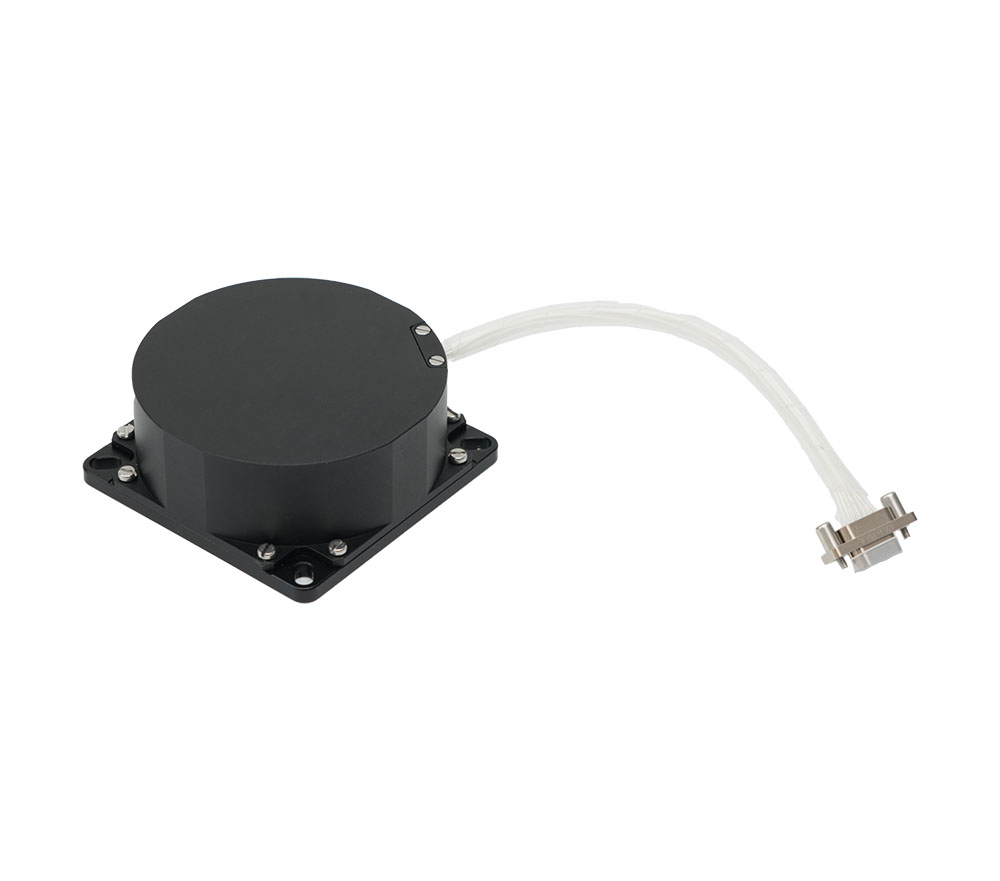

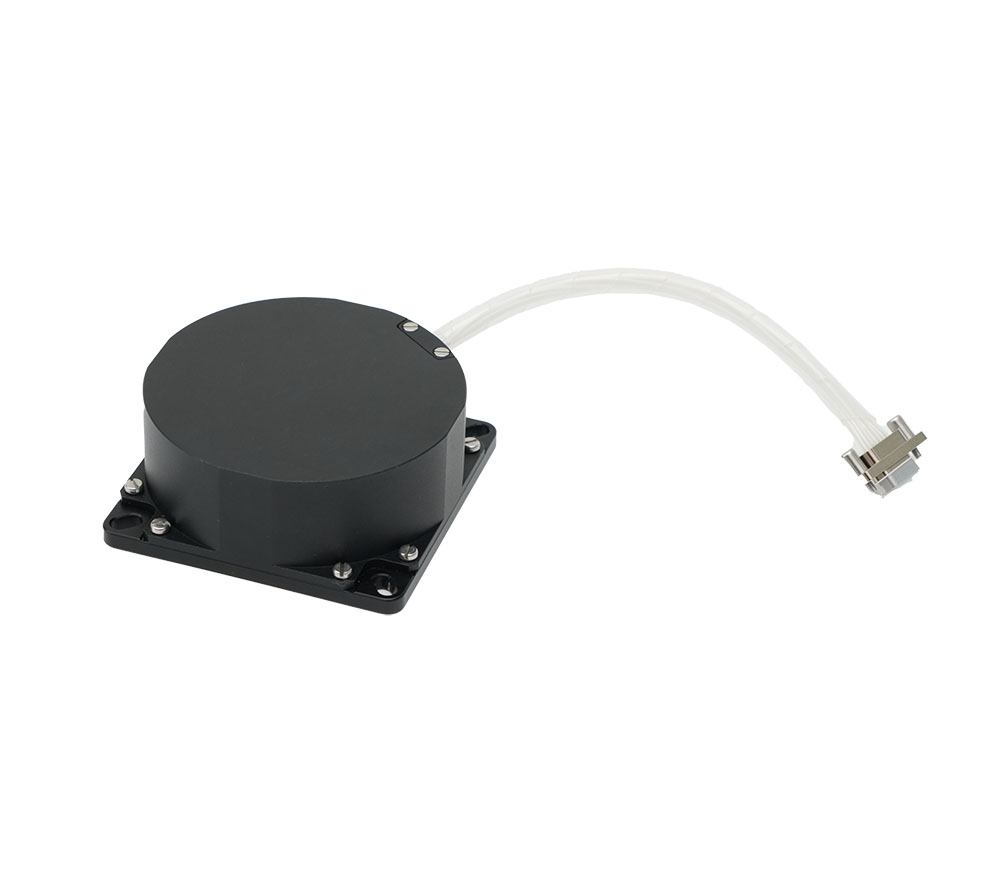

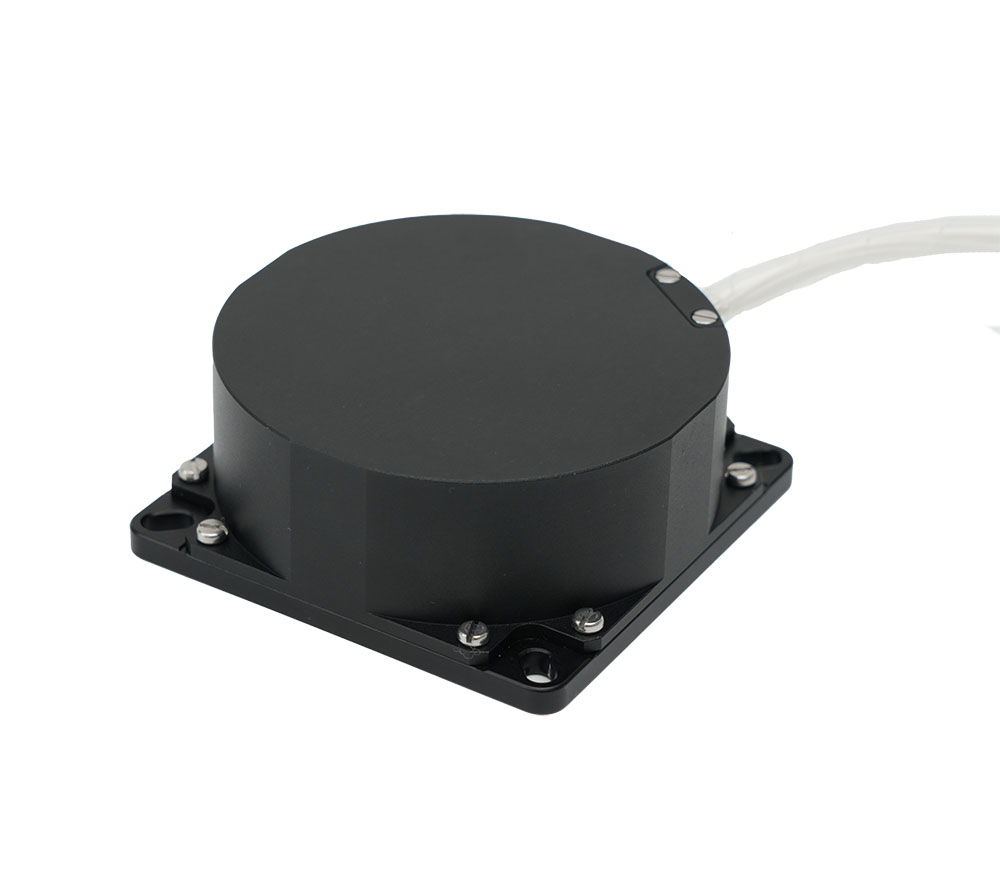

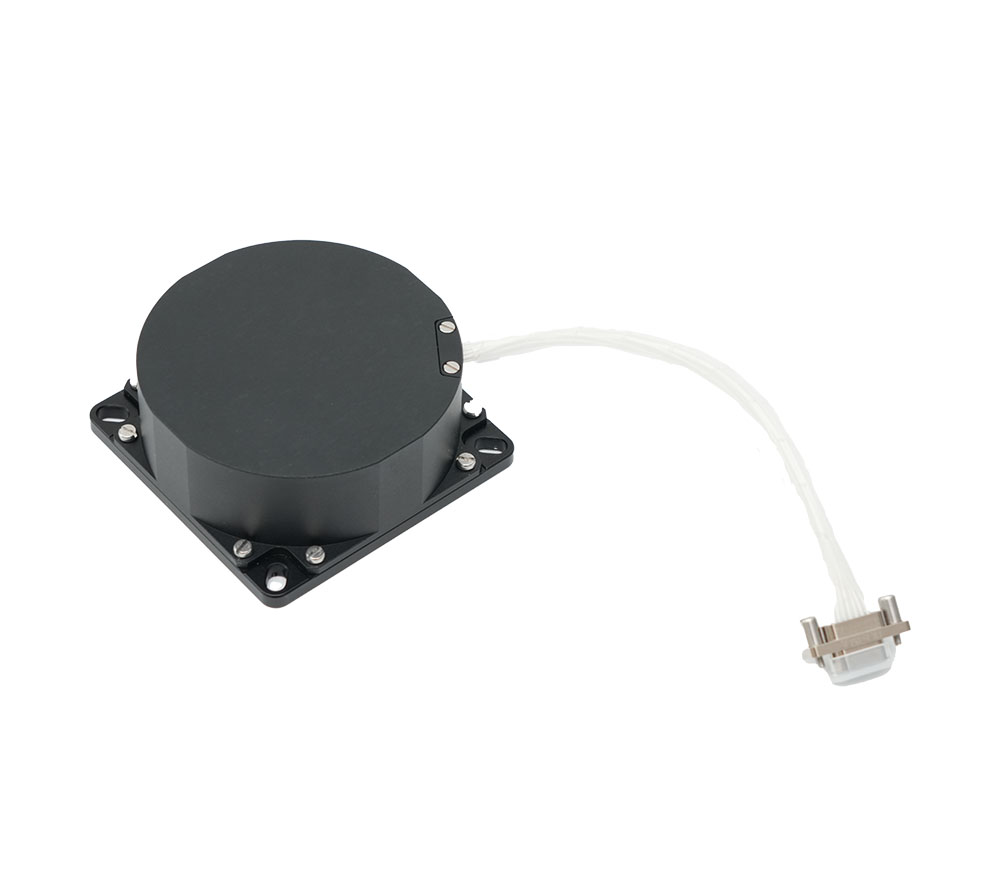

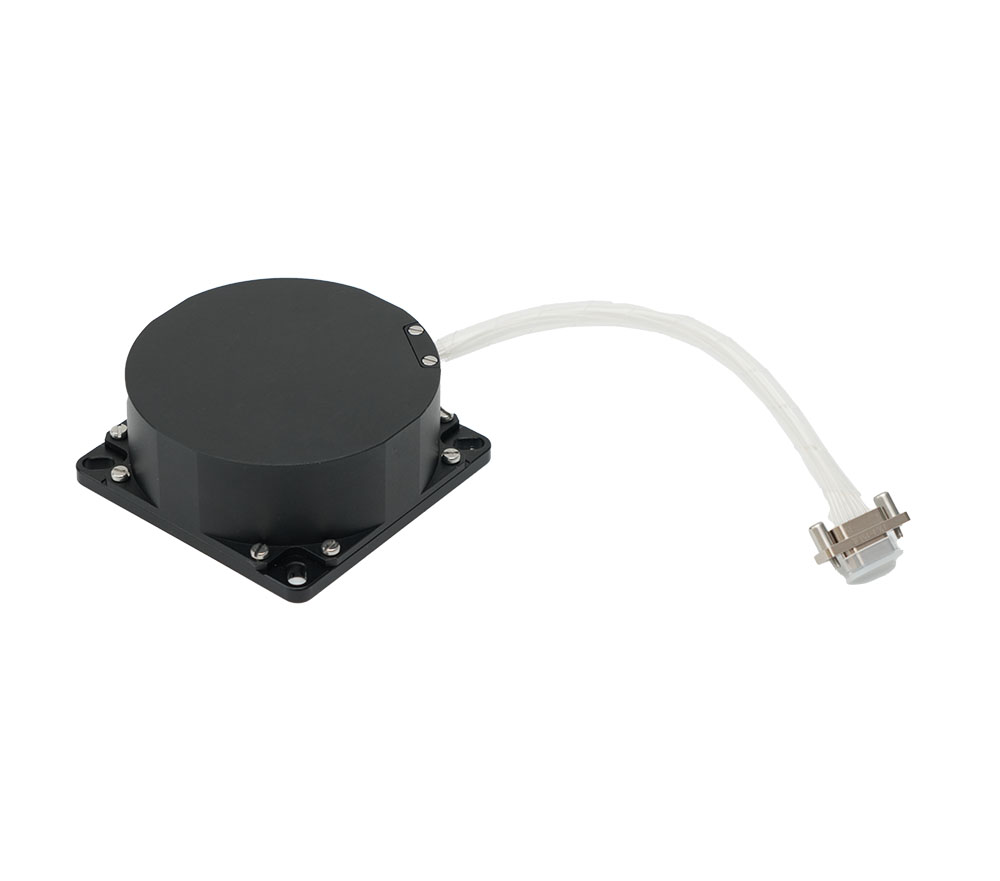

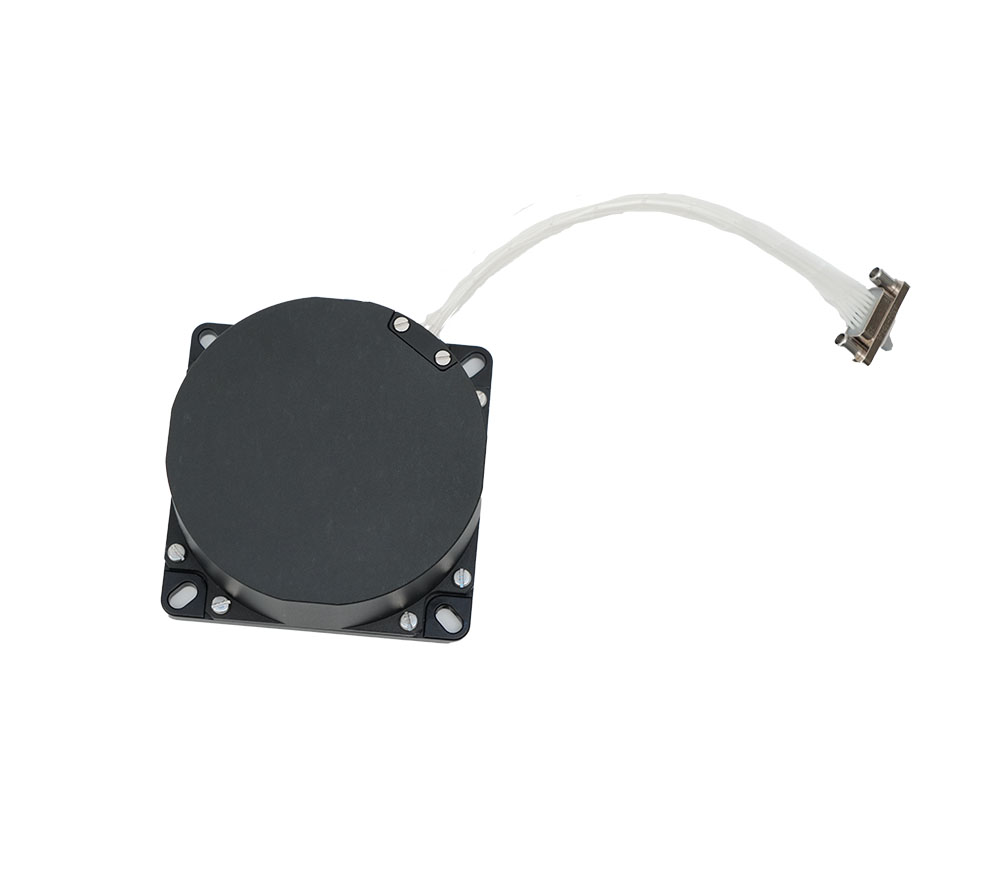

UAVs Fiber Optic Gyroscope BSD70 | Wide Dynamic Range and High Impact Resistance
description1
description2
Poseidon BSD60 is engineered with digital closed-loop technology, delivering exceptional zero-bias stability of 0.02º/h～0.2º/h (10s smoothing) for unmatched accuracy. With ultra-compact dimensions of 70mm×70mm×32.5mm and a lightweight design of ≤210g, this BSD is perfect for space-constrained applications.
Engineered for precision and durability, this gyroscope boasts a simplified structure, wide dynamic range, and rapid startup time, ensuring reliable performance even in the most demanding environments. Its exceptional resistance to vibration and shock makes it a robust solution for a wide range of advanced applications.
Preferred Choices:
● Servo Tracking & Inertial Navigation: Delivering high accuracy for stabilization and guidance.
● Railway Track Inspection: Ensuring precision in high-speed rail track monitoring.
● Electro-Optical Pods: Enhancing targeting and imaging systems.
● Mobile Satellite Communication (SATCOM): Providing stability in dynamic environments.
● Unmanned Aerial Vehicles: Supporting autonomous navigation for drones and unmanned ships.
Whether deployed in military, aerospace, or industrial settings, Poseidon BSD70 stands out as the preferred solution for precise angular rate sensing, offering a perfect blend of compactness, durability, and superior performance in all the above applications.
| Parameters | Unit | BSD70A | BSD70B | BSD70C | BSD70D |
| Input Range | °/s | ±1000 | ±1000 | ±1000 | ±1000 |
| Bias Stability | °/h 10S | ≤0.02 | ≤0.03 | ≤0.05 | ≤0.1 |
| Bias Repeatability | °/h | ≤0.02 | ≤0.03 | ≤0.05 | ≤0.1 |
| Random Walk Coefficient | ° /√ h | ≤0.002 | ≤0.003 | ≤0.005 | ≤0.01 |
| Scale Factor Non-linearity | ppm | ≤10 | ≤15 | ≤20 | ≤50 |
| Scaling Factor Repeatability | ppm | ≤10 | ≤15 | ≤20 | ≤50 |
| Scale Factor Asymmetry | ppm | ≤10 | ≤15 | ≤20 | ≤50 |
| Startup Time | s | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| Bandwidth | Hz | >200 | >200 | >200 | >200 |
| Power Supply | V | ±5(Single power supply -5 , +5 available) | |||
| Power | W | ≤ 6 | ≤ 6 | ≤ 6 | ≤ 6 |
| Operating Temperature | ℃ | -40~65 | -40~65 | -40~65 | -40~65 |
| Storage temperature | ℃ | -50~80 | -50~80 | -50~80 | -50~80 |
| Vibration | Hz, g²/Hz | 20~2000,0.06 | |||
| Shock | g , ms | 30,11 | 30,11 | 30,11 | 30,11 |
| Data Refresh Date | Hz | 200~2000 | 200~2000 | 200~2000 | 200~2000 |
| Baud Rate | bps | 115200~921600 | |||
| Output Mode | / | broadcast (default)/triggered (customized) | |||
| Interface | / | RS-422 | RS-422 | RS-422 | RS-422 |
| Connector | / | J30J-15TJL | J30J-15TJL | J30J-15TJL | J30J-15TJL |
| Dimensions | mm | 70×70×32 | |||
| Weight | g | 280 | 280 | 280 | 280 |
Key Benefits at a Glance
● Reliable Accuracy: Digital closed-loop technology ensures zero-bias stability of 0.02º/h to 0.2º/h for reliable performance in demanding applications.
● Compact & Lightweight: Measuring just 70mm×70mm×32.5mm and weighing ≤210g, it’s ideal for integration into space-constrained systems.
● High Precision & Wide Dynamic Range: Delivers consistent accuracy with a simple yet robust design.
● Wide Dynamic Range: Delivers consistent accuracy across diverse operational scenarios.
● Startup & Durability: Features minimal startup time and exceptional resistance to vibration and shock for reliable operation in harsh conditions.
● Perfect for:
• Servo Tracking & Inertial Navigation
• High-Speed Rail Track Inspection
• Electro-Optical Pods & Mobile SATCOM
• Unmanned Vehicles (Drones, Ships, etc.)
Whether for military, aerospace, or industrial automation, with Wide Dynamic Range and High Impact Resistance, BSD70 offers precision, reliability, and compactness in one cutting-edge solution. Elevate your navigation solution everyday!
Key Features
Ensures zero-bias stability of 0.02º/h to 0.2º/h for high precision and reliability.Our BSD70 features a built-in adaptive filter that significantly enhances performance, slashing bias stability and angle random walk (ARW) by 80%. This feature delivers unmatched precision and dependability.
Compact Design: Measures just 70mm×70mm×32.5mm, making it easy to integrate into space-limited systems.
Fast Startup & Strong Vibration/Shock Resistance. Compared to traditional electromechanical gyros, BSD70 features a simpler structure, no moving parts, and no wear components, resulting in faster start-up times, reduced maintenance, and a smaller footprint. Engineered for strong resistance to vibration and shock, ensuring reliability in challenging environments.
Including servo tracking, inertial navigation, railway inspection, electro-optical pods, mobile SATCOM, and unmanned vehicles.
High Precision & Wide Dynamic Range. As an angular speed sensor that integrates optical, mechanical, and electrical systems, based on the Sagnac effect and closed-loop control testing technology, BSD70 measures and processes the phase difference generated by two counter-propagating light beams, enabling precise angular rate detection and feedback within a fully closed-loop system.
● High Performance: Exceptional bias stability, low angle random walk, and superior scale factor linearity. With zero-bias stability of 0.02º/h to 0.2º/h, it delivers exceptional accuracy for critical applications.
● Cost-Effective: At just 70mm×70mm×32.5mm and ≤210g, it’s perfect for integration into systems where space and weight are limited. Offers the performance of high-end gyros at an affordable price.
● Versatile: Ideal for a wide range of uses, from inertial navigation and servo tracking to unmanned vehicles and railway inspection. Suitable for a wide range of military and industrial applications.
● Reliable: Built to withstand vibration, shock, and harsh environments, ensuring durability and long-term reliability. Proven technology ensures consistent performance in harsh environments.
Choose the BSD70 for precision, durability, and compact design that meets the demands of advanced motion sensing and stabilization systems.
